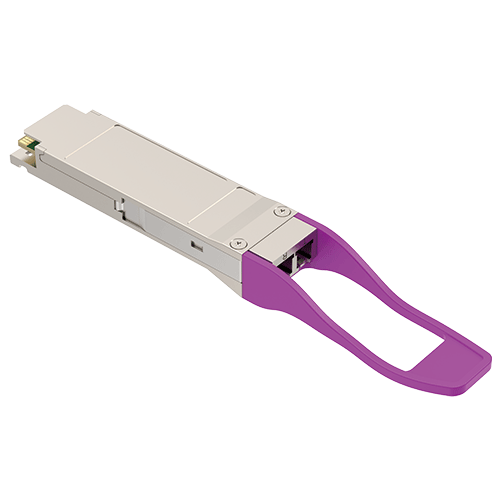

100G QSFP28 4WDM-10 DML CWDM4 10km SMF LC Optical Transceiver
FIBERSTAMP 100G QSFP28 4WDM-10 optical transceiver is used for long distance interconnection in data centers and is compliant with 100G 4WDM-10 MSA specification. The product has a built-in pair of 4-channel CWDM MUX and DEMUX with center wavelengths of 1271nm, 1291nm, 1311nm and 1331nm, respectively, and can be transmitted over distances up to 40km using a single-mode fiber pair (with FEC enabled).
Description
- Hot-pluggable, full-duplex transceiver module packaged in QSFP28 form factor
- 4 channels DFB-based CWDM uncooled transmitter and PIN ROSA
- Transmission rates of up to 25.78125Gbps per channel
- Compliant with QSFP28 MSA and 100G 4WDM-10 MSA Ethernet transport protocol
- Distance up to 10km using 1 pairs of single-mode fibers (both require FEC to be turned on)
- Power consumption less than 4w
- Dual LC optical connectors
- Commercial and industrial grade operating temperature range
- Supply voltage 3.3V
- RoHS compliant (lead-free)
| P/N | Description |
|---|---|
| FBG-100C4K10CL | 100GE QSFP28 4WDM-10 DML CWDM4 10km Optical Module |
| FBG-100C4K10TL | Industrial-grade 100GE QSFP28 4WDM-10 DML CWDM4 10km Optical Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
