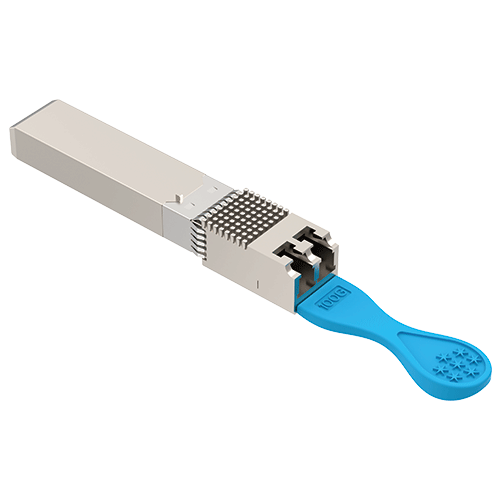

100G SFP56-DD LR1 1310nm 10km/20km SMF LC Optical Transceiver
FIBERSTAMP 100G SFP56-DD LR optical transceiver modules are purpose-built for facilitating high-speed data transmission in data center 100G Lambda 100G LR1-10 links, as well as supporting 5G fronthaul applications up to distances of 10km/20km across single-mode fiber.
Description
- Hot-pluggable, full-duplex transceiver module packaged in SFP56-DD form factor
- Transmission rates of up to 106.25Gbps
- 1×106.25Gb/s (PAM4) optical interface
- 2 x 53.125Gb/s (PAM4) electrical interfaces
- Internal CDR circuitry on receiver and transmitter channels
- Compliant with SFP-DD MSA, 100G Lambda 100G LR1-10 standard
- Transmission up to 10km/20km on SMF using KP-FEC
- Duplex LC optical interface
- Power consumption less than 3.5w
- Built-in digital diagnostic function
- Commercial operating temperature range
- Supply voltage 3.3V
- RoHS compliant (lead-free)
| P/N | Description |
|---|---|
| FBD-10031K10C | SFP56-DD LR1, 106.25Gb/s, 10km, EML+PIN, SMF, Dual LC |
| FBD-10031K20C | SFP56-DD LR1, 106.25Gb/s, 20km, EML+PIN, SMF, Dual LC |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
