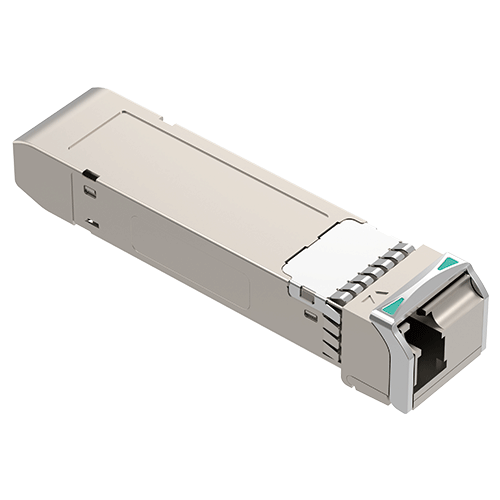

12G-SDI SFP+ BiDi Optical Modules
FIBERSTAMP 12G-SDI BiDi SFP+ is a series of single-fiber bidirectional transceiver integrated optical modules designed for high-definition video signal optical transmission applications, supporting SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI standards, which can achieve bidirectional transmission of up to 20km through a single single-mode fiber.
Description
- Available in a hot-pluggable SFP+ package
- Full-duplex transceiver integrated module
- DFB transmitter and PIN receiver
- Complies with SMPTE ST 297/2081/2082
- Supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI video pathological modes
- Maximum speed up to 11.88Gbps
- The transmission distance can be up to 20km through single-mode optical fiber
- The maximum power consumption is less than 1W
- Metal housing for reduced EMI
- Dual LC optical interfaces
- Optional MSA or Non-MSA pins
- Commercial grade operating temperature range from 0 to 70 degrees Celsius
- The supply voltage is 3.3V
- RoHS compliant (lead-free)
| P/N | Description |
|---|---|
| FCB-V122733K20CM | 12G-SDI BiDi SFP+, Tx 1270nm, Rx 1330nm, 20km, SMF, Single LC optical port, MSA pin |
| FCB-V123327K20CM | 12G-SDI BiDi SFP+, Tx 1330nm, Rx 1270nm, 20km, SMF, Single LC optical, MSA pin |
| FCB-V122733K20CN | 12G-SDI BiDi SFP+, Tx 1270nm, Rx 1330nm, 20km, SMF, Single LC photoport, Non-MSA pin |
| FCB-V123327K20CN | 12G-SDI BiDi SFP+, Tx 1330nm, Rx 1270nm, 20km, SMF, Single LC photoport, Non-MSA pin |
