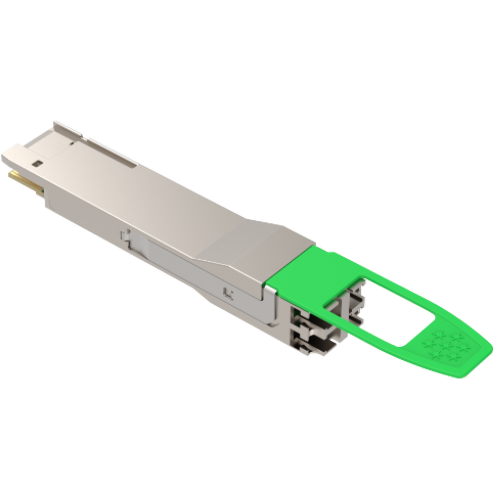

200G QSFP-DD 2×CWDM4 2km SMF Dual Duplex LC Optical Transceiver
FIBERSTAMP 200G QSFP-DD 2×CWDM4 optical transceiver module is designed for medium-distance interconnect in data centers, compliant with the IEEE 802.3cn 200GBASE-2xCWDM4 Ethernet transmission protocol, supporting link transmission of up to 2km.
Description
- 8 channels full-duplex transceiver modules
- 8 channels DFB with 2xCWDM4 wavelength
- 8 channels PIN photo detector
- Internal CDR circuits on both receiver and transmitter channels
- Power consumption <6.5W
- Hot-pluggable QSFP-DD form factor
- Single-mode fiber transmission distance of up to 2km
- Dual Duplex LC optical ports
- Operating temperature range: 0℃ to +70℃
- Power supply voltage: 3.3V
- Compliant with RoHS standard (lead-free)
| Product Model | Product Description |
|---|---|
| FBL-200CLxK02C | 200GE QSFP-DD 2×CWDM4 2km optical transceiver module with DSP |
Additional Information
| Data Rate | |
|---|---|
| Application | |
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
