200G QSFP-DD To 4x 50G QSFP28 Active Optical Cables 8x25G NRZ, 100Meters(328ft)

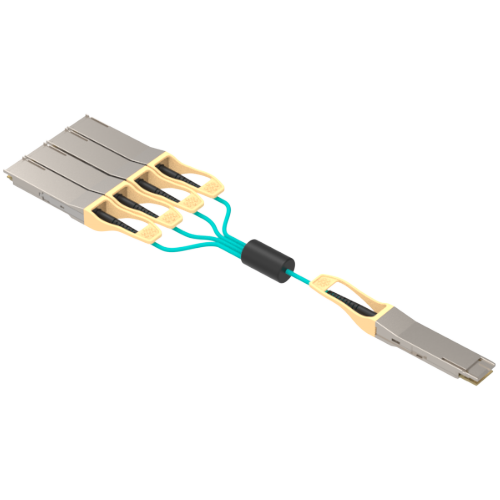

FIBERSTAMP 200G QSFP28-DD to 4x 50G QSFP28 AOC active optical cable is used for short-distance branch interconnection between internal devices in the data center, conforms to IEEE 802.3bm 100GBASE-SR4 Ethernet transmission protocol, and is also compatible with InfiniBand EDR transmission protocol. This series of products uses 8 pairs of parallel multimode optical fiber transmission, and the distance can reach up to 70m (OM3) or 100m (OM4).
Description
- An active optical cable assembly integrating one 200G QSFP-DD SR8 and four 50G QSFP28 SR2 optical transceiver modules at both ends
- Each side contains 8 channels of 850nm VCSEL and PIN
- The transmission rate per channel can reach up to 25.78125Gbps
- Compliant with QSFP-DD/QSFP28 MSA, CMIS and IEEE 802.3bm 100GBASE-SR4 Ethernet transmission protocol
- Compatible with InfiniBand EDR transmission protocol
- Using 8 pairs of parallel multimode optical fiber transmission, the distance can reach up to 70m (OM3) or 100m (OM4)
- Power consumption less than 4W (200G QSFP-DD SR8 optical module) or 1.5W (each 50G QSFP28 SR2 optical module)
- Commercial grade operating temperature range
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N & Data Sheet | Description |
|---|---|
| FYL4G-200MxxxC | 200G QSFP28-DD to 50G QSFP28 AOC |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
