200GBASE-SR4 QSFP56 AOC for liquid cooling

Description

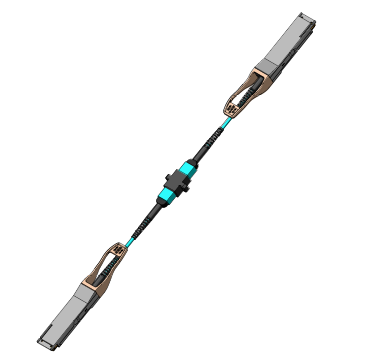

The FIBERSTAMP’s FQH-20085M10 QSFP56 AOC is designed for use in 200G Ethernet links over OM3/OM4/OM5 multimode fiber, both ends are QSFP56 liquid immersion transceiver and connected by single MPO connector receptacle, internal optics are covered and protected with special technique to prevent cooling liquid leakage, all of active optical cable assemblies are specially designed for liquid immersion environment. They are compliant with the QSFP MSA and IEEE 802.3cd 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. It integrates 4 data lanes in each direction with 4*53.125Gb/s bandwidth.

Note:

Note1:Contact FIBERSTAMP for more details.

Get A Quote

Description

Features
- Hot-pluggable QSFP56 form factor
- Built-in200G PAM4 DSP
- Supports 212.5Gb/saggregate bit rates
- Supports 103.125Gb/s aggregate bit rates if required^Note1
- Low power dissipation(per end)<5W
- RoHS-6 compliant (lead-free)
- Commercial case temperature rangeof 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 70m onOM3 MMF
  and 100m on OM4& OM5 MMF
- 4 channels 850nm VCSEL arrayand PIN PD array
- SingleMPO connector receptacle
- Built-in digital diagnostic functionalityand CMIS V4.0 compliant
Applications
- IEEE 802.3cd&nbsp200GBASE-SR4 Ethernet (PAM4)
- IEEE 802.3bm&nbsp100GBASE-SR4 Ethernet (NRZ)^Note1
- Especially design for liquid immersion environment
