25G SFP28 Active Optical Cables 25G NRZ, 100Meters(328ft)
FIBERSTAMP 25G SFP28 AOC active optical cable is used for short-distance interconnection between internal devices in the data center, and complies with IEEE 802.3by 25GBASE-SR Ethernet transmission protocol. This series of products use 1 pair of multimode optical fiber for transmission, and the distance can reach up to 70m (OM3) or 100m (OM4).
Description

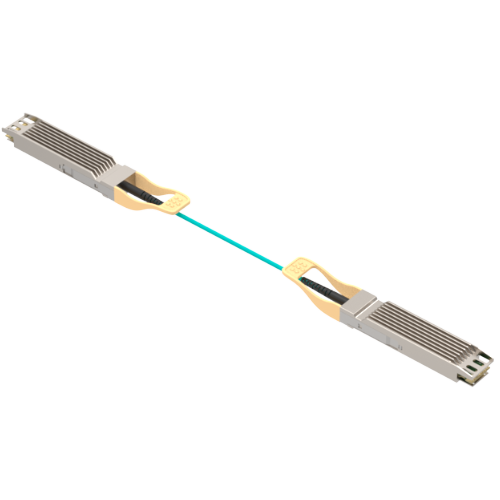

- An active optical cable assembly with a 25G SFP28 SR optical transceiver module integrated at each end
- Each side contains a single channel 850nm VCSEL and PIN
- Transmission rate up to 25.78125Gbps
- Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR Ethernet transmission protocol
- Using 1 pair of multimode fiber transmission, the distance can reach up to 70m (OM3) or 100m (OM4)
- Power consumption is less than 1W (each 25G SFP28 SR optical module)
- Commercial grade operating temperature range
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FYC-E25MxxxC FYC-E25MxxxT |
25G SFP28 AOC |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
