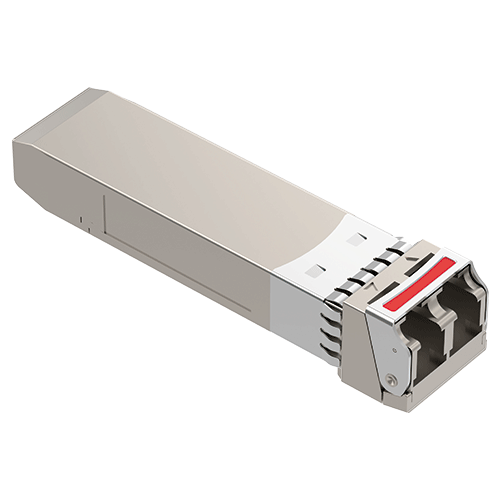

25G SFP28 ER EML 1310nm 30km/40km SMF LC Optical Transceiver (Industrial Grade Optional)
FIBERSTAMP 25G SFP28 ER optical transceiver module is used for 5G fronthaul, conforms to IEEE 802.3cc 25GBASE-ER Ethernet transmission protocol, and is also compatible with CPRI Option 10 and 25G eCPRI transmission protocol. This series of products uses a pair of single-mode optical fiber for transmission, with a center wavelength of 1310nm, a distance of up to 30km (without FEC) or 40km (with FEC turned on), and an optional industrial-grade operating temperature range.
Description
- Full-duplex transceiver integrated module in SFP28 hot-pluggable package
- Single channel 1310nm EML and APD
- Transmission rate up to 25.78125Gbps
- Compliant with SFP56 MSA and IEEE 802.3cc 25GBASE-ER Ethernet transmission protocol
- Compatible with CPRI Option 10 and 25G eCPRI transmission protocol
- Using 1 pair of single-mode fiber transmission, the distance can reach up to 30km (without FEC) or
- 40km (with FEC enabled)
- Dual LC optical interface
- Available in commercial and industrial temperature ranges
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FBC-D2531K40T | Industrial Grade 25GE/eCPRI SFP28 ER EML 1310nm 30km/40km Optical Transceiver |
Additional Information
| Application | |
|---|---|
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
