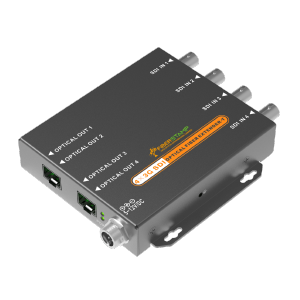

2×12G-SDI Extender
FIBERSTAMP 2-channel 12G-SDI optical extender boasts a transmission rate spanning 125Mbps to 11.88Gbps. It enables bidirectional transmission of two independent 12G-SDI video signals, covering distances of up to 20km. It also maintains backward compatibility with MADI, DVB-ASI, SD-SDI, HD-SDI, 3G-SDI, and 6G-SDI standards. GIGALIGHT’s 3G/6G/12G-SDI optical module empowers customers to expand one to two SDI signal channels seamlessly.
Description
- Input data rate when SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI is detected
- Automatically switch rates to 125Mbps, 270Mbps, 1.48Gbps, 3Gbps, 6Gbps and 12Gbps
- With a maximum transmission distance of 80km for 3G-SDI and 20km for 12G-SDI.
- Supported format :
- SMPTE ST 2082-1 (11.88Gbps/s)
- SMPTE ST 2081-1 (5.94Gbps/s)
- SMPTE ST 424 (2.97Gbps/s)
- SMPTE ST 292 (1.485Gbps/s)
- SMPTE ST 259(360Mb/s)
- DVB-ASI(270Mb/s)
- MADI (125Mb/s)
| Product Type | Description |
|---|---|
| FE2SP-2V12F | 2×12G-SDI Optical Extender |
