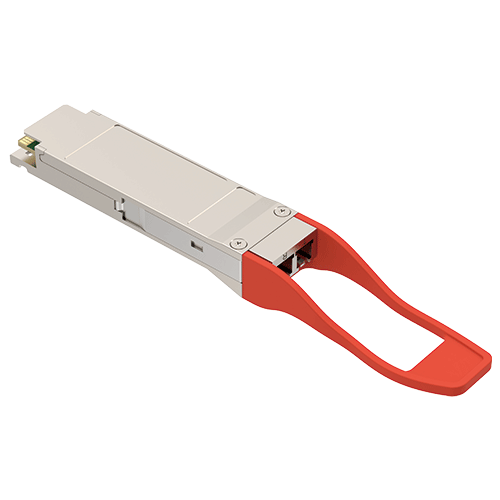

40G QSFP+ ER4 DML CWDM4 40km SMF LC Optical Transceiver
FIBERSTAMP 40G QSFP+ ER4 optical transceiver module is designed for long-distance interconnections in data centers. It complies with the IEEE 802.3bm 40GBASE-ER4 Ethernet transmission protocol and supports both 40GE and OTU3 dual-rate applications, which features an integrated pair of multiplexers (MUX) and demultiplexers (DEMUX), with each channel operating at a center wavelength of 1271nm, 1291nm, 1311nm, and 1331nm respectively. It utilizes a pair of single-mode fibers for transmission, allowing for a maximum reach of 40km.
Description
- 4-channel full-duplex transceiver module in QSFP+ hot-pluggable form factor
- 4 channels of non-cooled CWDM DML and high-sensitivity APD ROSA
- Compliant with QSFP+ MSA and IEEE 802.3bm 40GBASE-ER4 and OTN OTU3 transmission protocols
- Supports transmission rates up to 39.8Gbps to 44.6Gbps
- Utilizes single-mode fiber for transmission, with a maximum reach of 40km (link loss budget of 18.5dB)
- Power consumption of less than 3.5W
- Dual LC optical connectors
- Designed for commercial-grade operating temperature range
- Operates at a voltage of 3.3V
- Compliant with RoHS environmental standards (lead-free)
| P/N | Description |
|---|---|
| FBF-N40C4K40C | 40GE/OTU3 QSFP+ ER4 DML CWDM4 40km Optical Transceiver Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
Related Products
-
-
-
-
-
-
-
-
-

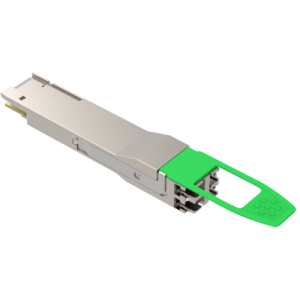

Optical TransceiversSiPh 800G QSFP-DD 2xFR4 CWDM4 2km SMF 2xDuplex LC Optical Transceiver
