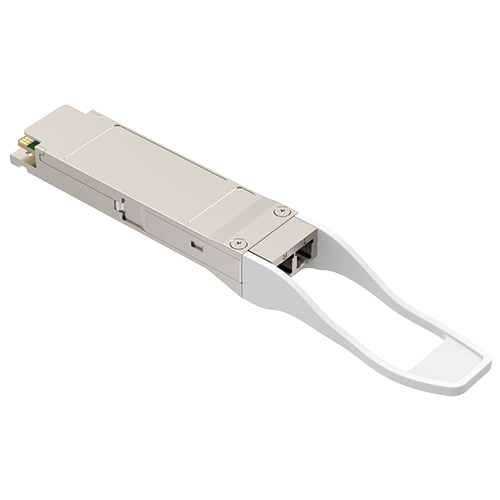

40G QSFP+ ZR4 EML LWDM4 80km SMF LC Optical Transceiver
FIBERSTAMP 40G QSFP+ ZR4 optical transceiver module is designed for long-distance interconnectivity in data centers. It complies with the 40G Ethernet transmission protocol and supports dual rates of 40GE and OTU3. This module features a built-in pair of 4-channel MUX and DEMUX. Each channel operates at a center wavelength of 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm. It utilizes a single-mode fiber pair for transmission, enabling distances of up to 80km.
Description
- 4-channel full-duplex transceiver module in QSFP+ hot-pluggable form factor
- 4-channel cooled EML LWDM TOSA and PIN ROSA (with built-in SOA)
- Compliant with QSFP+ MSA, 40G Ethernet and OTN OTU3 transmission protocols
- Supports transmission rates up to 39.8Gbps to 44.6Gbps
- Utilizes single-mode fiber for transmission, with a maximum reach of 80km
- Power consumption of less than 6W
- Dual LC optical connectors
- Designed for commercial-grade operating temperature range
- Operates at a voltage of 3.3V
- Compliant with RoHS environmental standards (lead-free)
| P/N | Description |
|---|---|
| FBF-N40L4K80C | 40GE/OTU3 QSFP+ ZR4 EML LWDM4 80km Optical Transceiver Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
