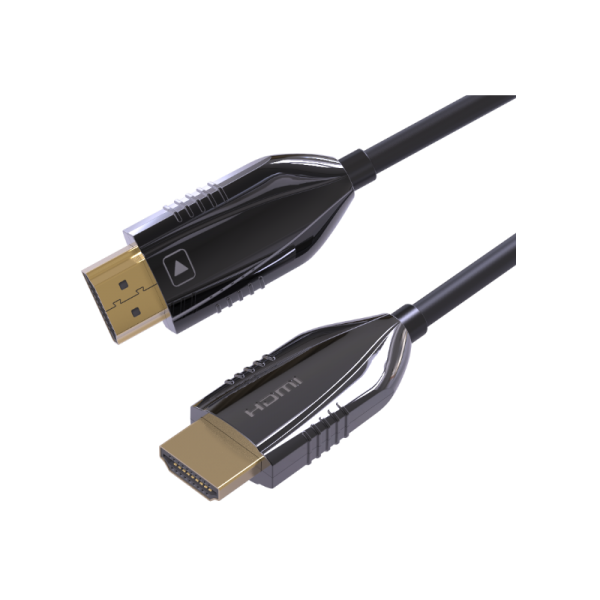

48Gbps HDMI 2.1 Type-A Optical Cable
Fiberstamp 48Gbps HDMI 2.1 Type-A optical fiber cable extends transmission distances between HDMI Source and Sink devices. It employs a hybrid cable combining multimode optical fiber and copper wire, allowing transmission distances of up to 100m.
Description
- Extend the transmission distance of HDMI video signal through multimode optical fiber, up to 100m
- Compatible with all HDMI Type-A ports
- Compliant with HDMI version 2.1 specification
- 850nm VCSEL array transmitter and PIN array receiver
- Support 8K@60Hz, 4K@120Hz, 1080p, 1080i and 720p video formats
- Support DHCP, EDID, CEC, DDC and audio
- Maximum transmission rate 48Gbps (up to 12Gbps per channel)
- Plug and play, no software installation required
- Longer and thinner optical copper hybrid cable, no electromagnetic radiation (EMII/RFI) or radio frequency interference
- low power consumption
- Commercial grade operating temperature range from 0 to 60 degrees Celsius
- All-metal casing can shield electromagnetic radiation (EMI)
- RoHS Compliant (Lead Free)
Specifications
| Parameters | Description |
|---|---|
| Supported HDMI version | HDMI 2.1 |
| Transmission rate | 48Gbps(4*12Gbps) |
| Supported video formats | 8K@60Hz/ 4K@120Hz/1080p/1080i/720p |
| Supported Functions | HDCP/EDID/CEC/DDC/Audio |
| Signal input/output connector | HDMI Type-A |
| Optical cable length | Up to 100m |
| Working temperature range | 0～60ºC |
| Storage temperature | -20～+85ºC |
| Power supply voltage | 5V |
| Current | Maximum 100mA per terminal |
| Fiber bending radius | Minimum 45mm |
| Product Type | Description |
| FH-21xxxxA | 48Gbps HDMI 2.1 Type-A fiber optic cable, 1m～100m |
Note*xxx：001=1m，002=2m，……，010=10m，……，100=100m
Additional Information
| Application |
|---|
