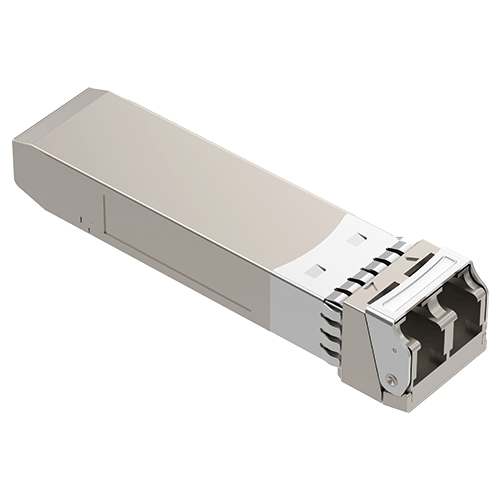

50G SFP56 DWDM EML 80km SMF LC Optical Transceiver Module (Industrial Grade Optional)
FIBERSTAMP 50G SFP56 DWDM optical transceiver module is used for 5G fronthaul, conforms to 50 Ethernet transmission protocol, and is also compatible with 50G eCPRI transmission protocol. This series of products uses 1 pair of single-mode optical fiber transmission, C-band 100GHz C18-C61 44 working wavelengths are optional, the distance can reach up to 80km (EDFA and DCM are required), and the working temperature range of industrial grade is optional.
Description
- Full-duplex transceiver integrated module in SFP56 hot-pluggable package
- Single channel DWDM (C-band 100GHz C18-C61 44 wavelengths optional) EML and PIN
- Transmission rate up to 53.125Gbps (50G PAM4)
- Compliant with SFP56 MSA and 50G Ethernet transmission protocol
- Compatible with 50G eCPRI transmission protocol
- Using a single single-mode fiber transmission, the distance can reach up to 80km (requires EDFA and DCM)
- Power consumption is less than 3.1W
- Single LC optical interface
- Available in commercial and industrial temperature ranges
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FBD-E50DxxK05T | Industrial Grade 50GE/eCPRI SFP56 DWDM EML 100GHz C18-C61 80km Optical Transceiver Module |
Additional Information
| Application | |
|---|---|
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
Related Products
-
-
-
-
-
-
-
-
-
Optical TransceiversSiPh 800G QSFP-DD 2xFR4 CWDM4 2km SMF 2xDuplex LC Optical Transceiver
Read more -
Optical Transceivers

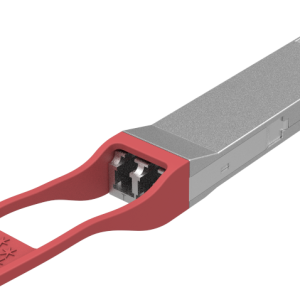

SiPh 800G QSFP-DD 2xLR4 CWDM4 10km SMF 2xDuplex LC Optical Transceiver
