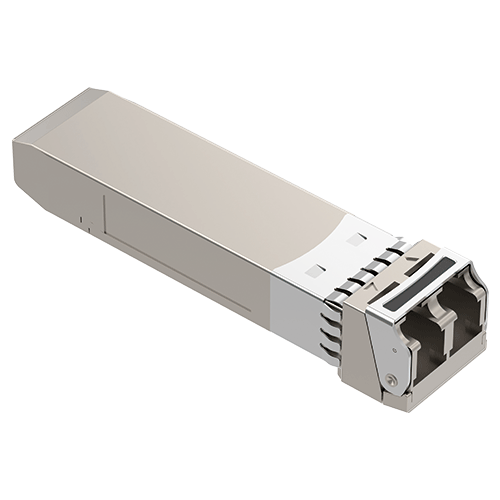

50G SFP56 SR VCSEL 850nm 100m MMF LC Optical Transceiver Module (Industrial Grade Optional)
FIBERSTAMP 50G SFP56 SR optical transceiver module is used for short-distance interconnection between internal devices in the data center or 5G fronthaul. It complies with IEEE 802.3cd 50GBASE-SR Ethernet transmission protocol and is compatible with 50G eCPRI transmission protocol. This series of products use 1 pair of multimode optical fiber for transmission, the center wavelength is 850nm, the distance can reach up to 70m (OM3) or 100m (OM4), and the working temperature range of industrial grade is optional.
Description
- Full-duplex transceiver integrated module in SFP56 hot-pluggable package
- Single channel 850nm VCSEL and PIN
- Transmission rate up to 53.125Gbps (50G PAM4)
- Compliant with SFP56 MSA and IEEE 802.3cd 50GBASE-SR Ethernet transmission protocol
- Compatible with 50G eCPRI transmission protocol
- Using 1 pair of multimode fiber transmission, the distance can reach up to 70m (OM3) or 100m (OM4)
- Power consumption is less than 2W
- Dual LC optical interface
- Available in commercial and industrial temperature ranges
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FBD-E5085M10C | 50GE SFP56 SR VCSEL 850nm 100m Optical Transceiver Module |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
