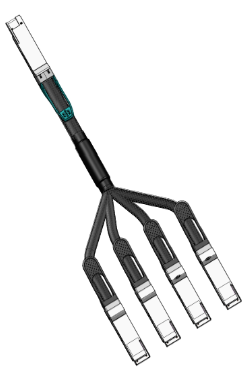

800G QSFP-DD to 4x200G QSFP112 Direct Attach Cable
FIBERSTAMP’s passive copper cable assembly series product provide superior signal integrity performance and reliability,QSFP-DD passive copper cable assembly doubles the number of 25G NRZ &50G PAM4/lane from 4 to 8 lanes comparing QSFP cabling systems, double density still maintains backward plug compatibility to meet next generation market needs.
FIBERSTAMP’s FWL4J-80030D15C cable assemblies are effective alternatives to fiber optics. The cable connects data signals from each of the 16 pairs on the single QSFP-DD end to the quad QSFP-DD ends, each pair operates at data rates of up to 100Gb/s, each QSFP-DD/QSFP112 port can be addressed by EEPROM to provide product information, which can be read or write by I2C interface.
FIBERSTAMP’s FWL4J-80030D15C cable assemblies is compliant with the QSFP-DD-MSA and IEEE802.3ck ,it’s high performance & cost effective I/O solutions for LAN, HPC and SAN. The high speed cable assemblies meet and exceed 800Gigabit Ethernet, InfiniBand EDR /HDR and temperature requirements for performance and reliability.
Description
- Features
- Hot-plug QSFP-DD form factor
- Support 8x 50/100Gb/s PAM4 modulation
- Commercial case temperature rangeof 0°C to 70°C
- 26 AWG ~30 AWG support up to 1.8m length
- Contain EEPROM & programmable to customized
Applications
- Data storage and communication industry
- Switch / router / HBA
- Enterprise network
- Data Center Network
- SAN
STANDARDS COMPLIANCE
- IEEE P802.3ck D3.0
- QSFP-DD MSA HW Rev 6.01
- QSFP112 MSA
- ROHS
| Part Number | FWL4J-80030D15C | ||
| Length (meter) | 0.5 | 1 | 1.8 |
| Wire gauge (AWG) | 30 | 30 | 26 |
