800G QSFP VR8 VCSEL 850nm 100m MMF MPO Optical Transceiver

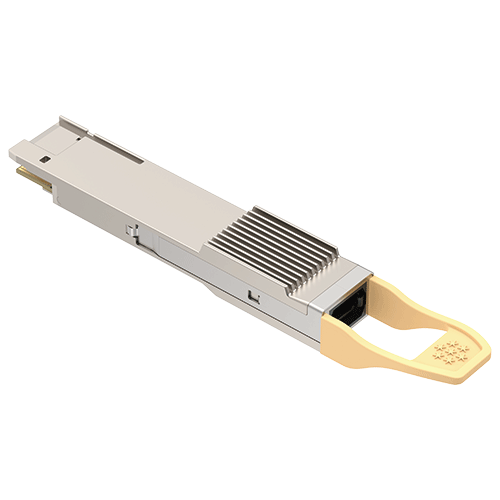

FIBERSTAMP 800G QSFP VR8 is a hot-pluggable optical transceiver module designed for 800G VR8 Ethernet links in data centers. It adopts 100G PAM4 and VCSEL technology and can realize 800G data exchange within 50m.

Facebook Linkedin Youtube Twitter

Description

  • 8-channel full-duplex transceiver integrated module in QSFP-DD hot-pluggable package
  • 8-channel 850nm VCSEL and PIN
  • 8x112G PAM4 modulation
  • Built-in 7nm DSP chips for receive and transmit channels
  • Compliant with QSFP MSA, CMIS 4.0 and IEEE 800GBASE-VR8 Ethernet transport protocols
  • Transmission using 8 parallel pairs of multimode fiber at distances up to 30m (OM3 MMF) or 50m (OM4 MMF)
  • MPO16/APC optical interfaces
  • Power consumption less than 14W
  • Supports CMIS version 4.0 protocol
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)
P/N Description
FEL-800S8M05C 800GE QSFP-DD VR8 VCSEL 850nm 50m Optical Transceiver Modules

Additional Information

Application

Form Factor

Media Type

Interface

Product Type

Protocol

,

Reach

Wavelength
