Comprehensive Open Optical Network
FIBERSTAMP’s comprehensive suite of solutions for the Open Optical Network System. Our lineup includes Passive Wavelength Division Multiplexing (WDM) systems, Non-coherent DWDM subsystems enhancing transmission quality and extending distances, and Coherent DCI BOX offerings enabling ultra-large-capacity service access and seamless expansion. These solutions cater to metropolitan, regional, and DWDM networks, optimizing transmission while conserving optical fiber resources. Ideal for long-haul Data Center Interconnection (DCI) and telecom transmission networks, our technologies support up to 800G/1.6T/3.2T/6.4T/12.8T ultra-long-haul service transmission, reshaping the landscape of open optical networks.
Coherent DCI BOX
Perfect for long-haul Data Center Interconnection (DCI) and metro/ telecom transmission networks, supporting up to 800G/1.6T/3.2T/6.4T/12.8T ultra-large-capacity service access and ultra-long-haul service transmission. Coherent DCI BOX advantages with small size, easy to expand and broaden business moves.
Product Description
-
2U 12.8T DCI BOX 2.0
(8x1.6T) -
1U 6.4T DCI BOX
(4x1.6T) -
1U 1.6T DCI BOX
(4x400G) -
1U 1.6T DCI BOX
(8x200G) -
1U 800G DCI BOX
(4x200G)

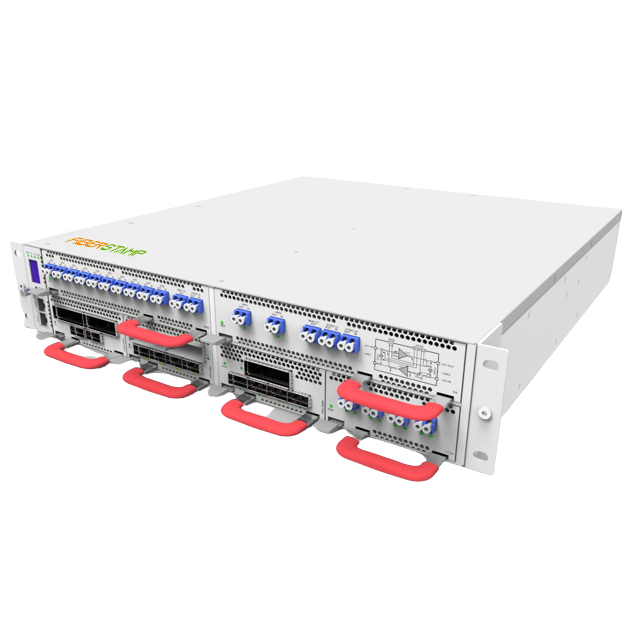

2U 12.8T DCI BOX 2.0
FIBERSTAMP's 2U 12.8T DCI BOX 2.0 coherent wavelength division transmission system is a brand new open service DWDM transmission platform for data center interconnection(DCI) and metro network wavelength division applications. The unified 2U rack integrates optical and electrical layer boards with flexible configuration of 100G/200G/400G rates for line-side CFP2/QSFP-DD interfaces, supports up to 12.8T capacity; supports EDFA board, WSS board, OP board, SNMP/Netconf protocol, CLI/Web/BS management, dual host backup, OSC communication, which has powerful transmission and management capabilities that are ideal for data centers and metro networks.
2x200G Muxponder
FIBERSTAMP's 2×200G Muxponder board supports transparent transmission of 4 channels of 100G services. It is able to convert 4 channels of 100G service signals into 2 coherent optical signals of 200G DWDM standard wavelength.
400G CFP2 Muxponder Card
FIBERSTAMP's 400G Muxponder board supports transparent transmission of 4 channels of 100G services and is able to convert 4 channels of 100G service signals into one coherent optical signal of 400G DWDM standard wavelength. It supports 1x400G CFP2 port and 4x100G QSFP28 ports.
400G QSFP-DD Muxponder Card
FIBERSTAMP's 400G Muxponder board supports transparent transmission of 4 channels of 100G services and is able to convert 4 channels of 100G service signals into one coherent optical signal of 400G DWDM standard wavelength. It supports 1x400G QSFP-DD port and 4x100G QSFP28 ports.
2x400G CFP2 Transponder OTU Card
FIBERSTAMP's 2x400G Muxponder board supports transparent transmission of 2 channels of 400G services. It is able to convert 1 channel of 400G service signals into 1 optical signal of 400G DWDM standard wavelength.
4x400G OEO Card
FIBERSTAMP's 400G QSFP-DD OEO card supports four 400G signal wavelength conversion and regeneration trunks. A single board supports a maximum of eight 400G QSFP-DD optical modules.
1U 6.4T DCI BOX (4x1.6T)
FIBERSTAMP's 1U 6.4T DCI BOX (4x1.6T) is an industry-leading innovative product for open ultra-long-haul data center interconnect (DCI) coherent optical transmission network, supporting ultra-large capacity services access, ultra-long transmission distance, simple convenient operation, and maintenance management. While ensuring the reliable operation of the optical network, the device features the advantages of energy saving and emission reduction and effectively meets the data center interconnection needs of users such as internet companies, operators, and cloud service providers.
2x200G Muxponder Card
FIBERSTAMP's 2×200G Muxponder board supports transparent transmission of 4 channels of 100G services. It is able to convert 4 channels of 100G service signals into 2 coherent optical signals of 200G DWDM standard wavelength.
400G CFP2 Muxponder Card
FIBERSTAMP's 400G Muxponder board supports transparent transmission of 4 channels of 100G services and is able to convert 4 channels of 100G service signals into one coherent optical signal of 400G DWDM standard wavelength. It supports 1x400G CFP2 port and 4x100G QSFP28 ports.
400G QSFP-DD Muxponder Card
FIBERSTAMP's 400G Muxponder board supports transparent transmission of 4 channels of 100G services and is able to convert 4 channels of 100G service signals into one coherent optical signal of 400G DWDM standard wavelength. It supports 1x400G QSFP-DD port and 4x100G QSFP28 ports.
2x400G CFP2 Transponder OTU Card
FIBERSTAMP's 2×400G CFP2 OTU service board is used for ultra-long-haul coherent optical transmission networks. It is the featuring module of the 8×400G 1U DCI BOX independently developed by Fiberstamp. It supports converting two 400G service signals into 2 single-channel 400G DWDM optical signals.
4x400G QSFP-DD OEO Card
FIBERSTAMP's 400G QSFP-DD OEO card supports four 400G signal wavelength conversion and regeneration trunks. A single board supports a maximum of eight 400G QSFP-DD optical transceivers.
1U 1.6T DCI BOX (4x400G)
FIBERSTAMP's 1U 1.6T DCI BOX (4 x 400G series) is a customized service platform for data center interconnection (DCI) applications. It supports a maximum transmission capacity of 1.6Tbps. The line side include four 400G CFP2 coherent optical paths, and the client side can be accessed with sixteen 100G QSFP28 links. It is suitable for use in data center computer rooms since its powerful transmission capacity. The platform adopts front and rear heat dissipation design, and is equipped with multiple sets of high-speed fans to ensure excellent heat dissipation performance.
200G Muxponder
FIBERSTAMP's 200G Muxponder board supports transparent transmission of 2 channels of 100G services. It is able to convert 1 channel of 100G service signals into 1 optical signal of 100G DWDM standard wavelength or convert 2 channels of 100G service signals into 1 coherent optical signal of 200G DWDM standard wavelength.
400G Muxponder
FIBERSTAMP's 400G Muxponder board supports transparent transmission of 4 channels of 100G services and is able to convert 4 channels of 100G service signals into one coherent optical signal of 400G DWDM standard wavelength.
2x200G Muxponder
FIBERSTAMP's 2×200G Muxponder board supports transparent transmission of 4 channels of 100G services. It is able to convert 4 channels of 100G service signals into 2 coherent optical signals of 200G DWDM standard wavelength.
1U 1.6T DCI BOX
FIBERSTAMP's 1U 1.6T DCI BOX is a coherent DWDM device with four 400G (2× 200G) OTU cards designed for Data Center Interconnection (DCI), supporting 1.6Tb/s ultra-large-capacity service access and ultra-long-haul service transmission. The operation and maintenance management of the device is very simple, convenient and reliable, and it can save energy and reduce emissions, which can effectively meet the DCI needs of clients such as Internet service providers, telecom operators, and cloud service providers.
400G (2x200G) OTU Card
FIBERSTAMP's 400G (2x 200G) OTU card is a coherent DWDM subsystem designed for FIBERSTAMP 1U 1.6T DCI BOX. Each card can convert four 100G access signals into two 200G DWDM signals, with which a single-fiber capacity of up to 19.2Tb/s (96 channels) can be achieved, providing a high-capacity solution for Data Center Interconnection (DCI) and other transmission networks with scarce fiber resources and large losses.
1U 800G DCI BOX
FIBERSTAMP's 1U 800G DCI BOX is a coherent DWDM device with up to four 100G/200G OTU cards designed for long-haul Data Center Interconnection (DCI) and metro/telecom transmission networks, supporting up to 800Gb/s ultra-large-capacity service access and ultra-long-haul service transmission. The operation and maintenance management of the device is very simple, convenient and reliable, and it can save energy and reduce emissions, which can effectively meet the DCI needs of clients such as Internet service providers, telecom operators, and cloud service providers.
100G/200G CFP2 OTU Card
FIBERSTAMP's 200G Muxponder board supports 2 channels of 100G service transparent transmission, and can convert 1 channel of 100G service signals into a 100G DWDM standard wavelength optical signal or 2 channels of 100G service signals into a 200G DWDM Optical signal of standard wavelength.
