200G QSFP56 Immersible Cooling Extender

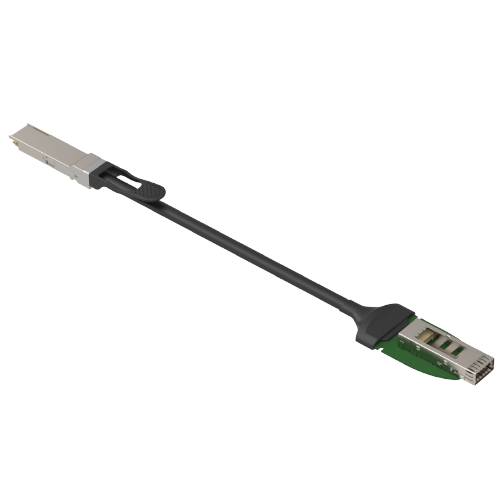

FIBERSTAMP’s 200G QSFP56 immersion cooling extender, plays a vital role in this liquid immersion solution. It allows standard QSFP transceivers/AOCs to function within an immersion environment. The extender consists of three parts: extender cage, cable, and QSFP housing, enabling customizable cable lengths of up to 0.5m for extension, safeguarding optical components from direct exposure to the liquid.
Description
- QSFP MSA compliant
- Typical insertion loss < 5dB@13.28GHz
- 100ohm differential impedance
- 3.3V power supply
- I2C read/write capability
- LED status indicators
- Low EMI radiation and crosstalk
- RoHS 6 compliant (lead-free)
P/N | Description |
---|---|
FSQE-PC201-DXX | Immersible 200G QSFP56 Cooling Extender |
Additional Information
Application | |
---|---|
Form Factor | |
Product Type | |
Reach |
