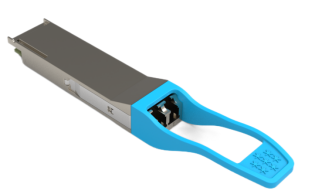

100G-DWDM1 QSFP28 O-Band 200GHz 16 Channels Optical Transceiver
The FIBERSTAMP FBG-100OK10C is optical transceiver designed for using in 100-Gigabit Ethernet links up to 10km over Single-Mode Fiber (SMF). It is compliant with the QSFP28 MSA , 100G Lambda MSA 100G-LR Specification and CAUI-4(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. It integrates 4 data lanes in each direction with 4×25.78125Gb/s bandwidth. The electrical interface uses a 38-contact edge type connector. The optical interface uses a Duplex LC connector. This module incorporates FIBERSTAMPproven circuit and Silicon Photonics technology to provide reliable long life, high performance, and consistent service.
Description
- Features
- Supports 100Gbps
- Fixed O-Band DWDM 200GHz 16 Channels(wavelengths)
- 78125Gbit/s NRZ electrical interface(CAUI-4)
- 1025Gb/sPAM4 based on Silicon Photonics
- 100G Lambda MSA 100G-LR Specification Compliant
- 5W maximum power dissipation
- Hot-pluggable QSFP28form factor
- Maximum link length of 10km on G.652 SMF with KP-FEC
- Duplex LC receptacles
- Built-in digital diagnostic functions
- Operating case temperature range: 0 to 70°C
- Single 3.3V power supply
- RoHScompliant (lead free)
Applications
- 100G Ethernet
- Data center
Additional Information
| Application | 5G Carrier Network, Access Network, Broadcast & Consumer Optics, Data Center, Metropolitan Area Network, Telecom |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
