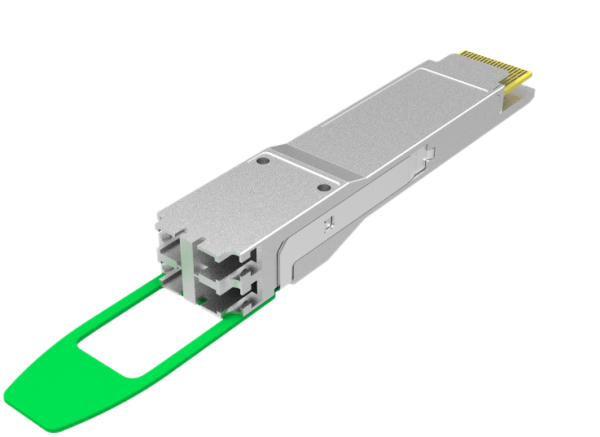

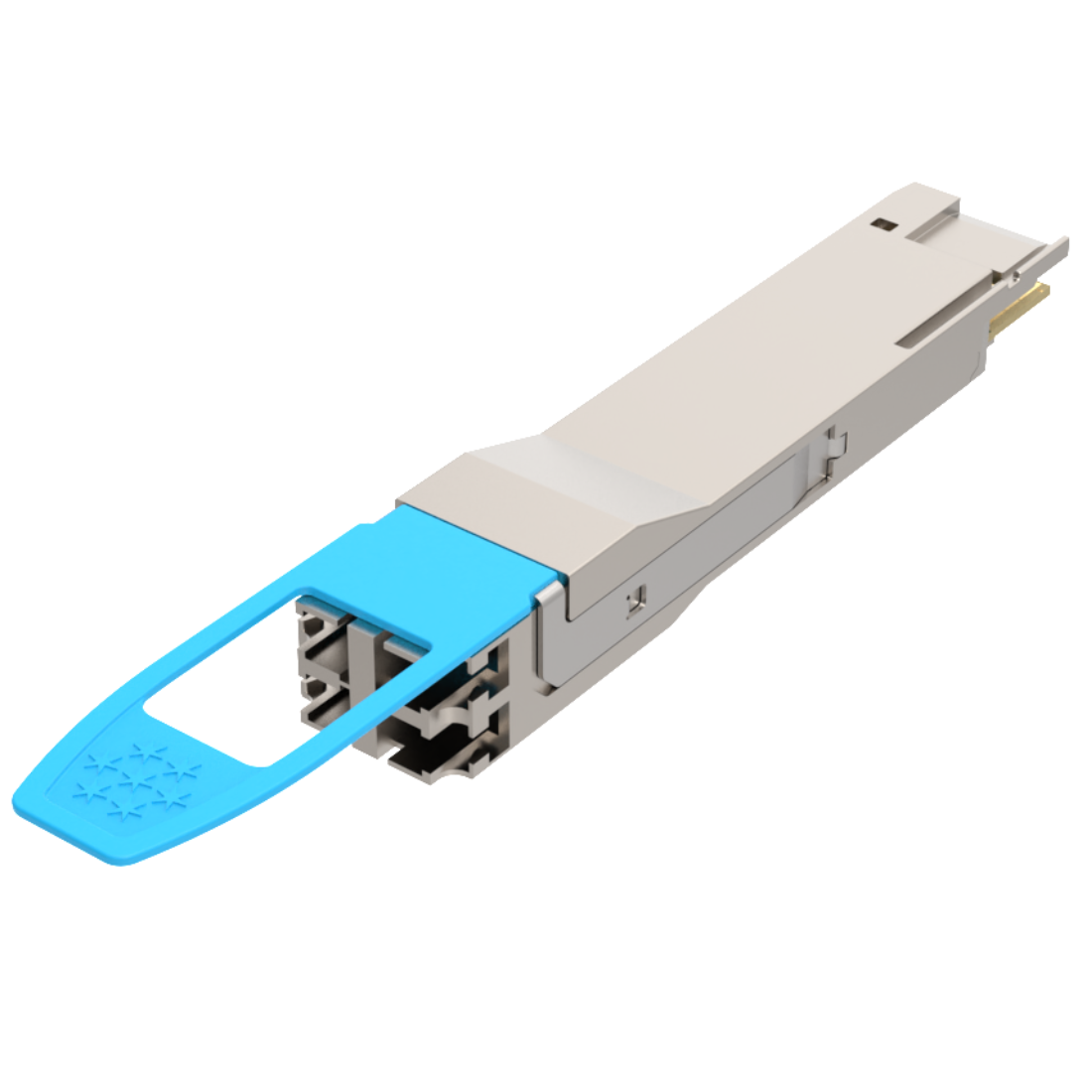

SiPh 800G QSFP-DD 2xLR4 CWDM4 10km SMF 2xDuplex LC Optical Transceiver
FIBERSTAMP’s 800G QSFP-DD 2xLR4 silicon photonics hot-pluggable optical modules are engineered with silicon photonics integration for 800GBASE-2xLR4 Ethernet links within data centers. Utilizing 100G PAM4 and 2×4-way single-mode parallel technology, these modules support transmission distances of up to 10km.
Description
- 8-channel full-duplex transceiver integrated module in QSFP-DD hot-pluggable package
- Data rate up to 850Gbps
- Compliant with QSFP MSA, CMIS 4.0 and 800G Ethernet transport protocols
- Transmission using single fiber at distances up to 10km (with FEC on)
- 2xDuplex LC optical interfaces
- Power consumption less than 18.5W
- Supports CMIS version 4.0 protocol
- Commercial grade operating temperature range
- Power supply voltage 3.3V
- Comply with RoHS environmental protection standard (lead-free)
| P/N | Description |
|---|---|
| FUL-800C4K10C | SiPh 800G QSFP-DD 2xLR4 CWDM4 10km 2xDuplex LC Optical Transceiver |
Additional Information
| Application | |
|---|---|
| Form Factor | |
| Media Type | |
| Interface | |
| Product Type | |
| Protocol | |
| Reach | |
| Wavelength |
